Eldon Tool and Engineering | 23249 | Engine Timing Tool Set

23249 | Engine Timing Tool Set - 2.5/3.0 < previous | next >

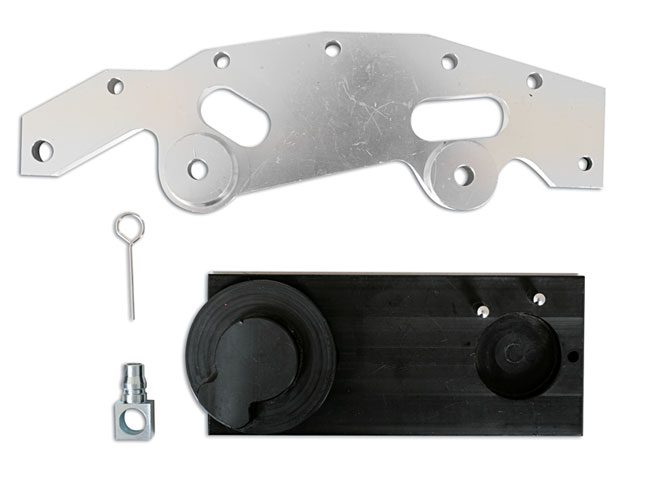

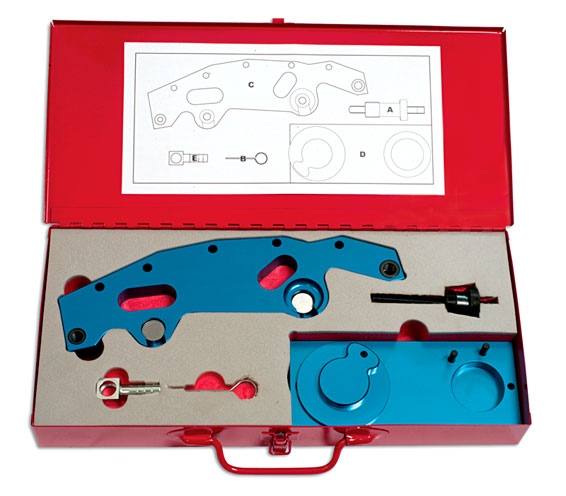

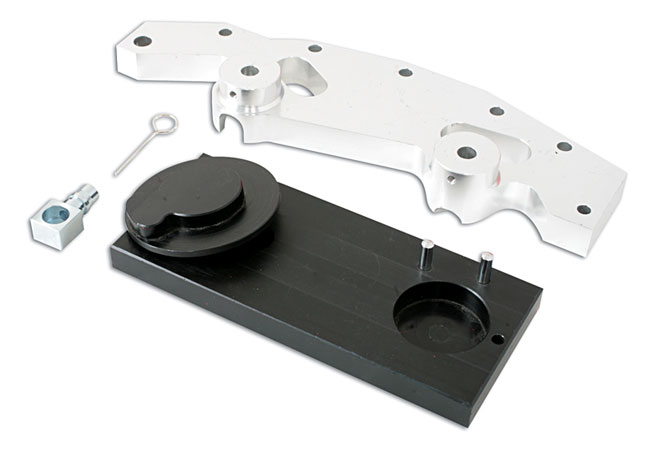

An additional set of tools used in conjunction with 23048 for locking the engine timing on M52, M54 with engine codes 22 6S1, 25 6S5, 30 6S3.

Email to friend

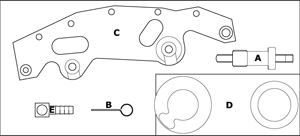

ID	OEM Ref	Description	Part
A	11 3 390 LRT 12-222 12-222 LRT-12-222 113390 LRT12-222 LRT 12 222 12 222 LRT12 222 LRT12222 12222 11 3 390/11 7 380	Timing Chain Pre-Tension Tool (Nut and Spindle)	23048-05
B	2mm Drill Bit 11 3 292 12-114 KM 823 LRT12-114 LRT-12-114 2mmDrillBit 113292 12 114 KM823 LRT12 114 LRT 12 114 12114 LRT12114	Tensioner Locking Pins (2)	23048-07
C	11 6 150 116150	Camshaft Timing Setting Tool	23249-A
D	11 6 180 116180	Camshaft Sprockets Alignment Tool	23249-B
E	11 3 450 113450	Vanos Unit Checking Tool	23249-C
