Eldon Tool and Engineering | 23048-00 | Master Engine Timing Tool Set

23048-00 | Master Engine Timing Tool Set - BMW < previous | next >

A comprehensive set of 14 tools suitable for both SOHC and Twin Cam applications.

The comprehensive application list for this set covers 3/5/7 series, X3/5, Z3/4, 840i/850i with E20/E31/E32/E34/E36/E38/E46/E84 petrol engines plus 1/3/5/7 Series. X3/5 with E28/E34/E36/E38/E39/E46/E53/E65/E66/E83 diesel engines.

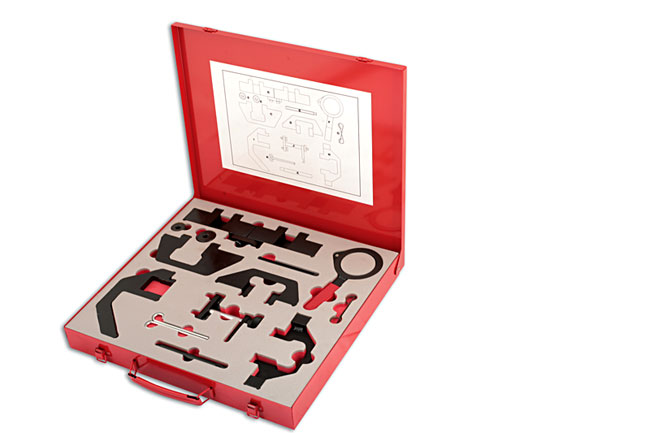

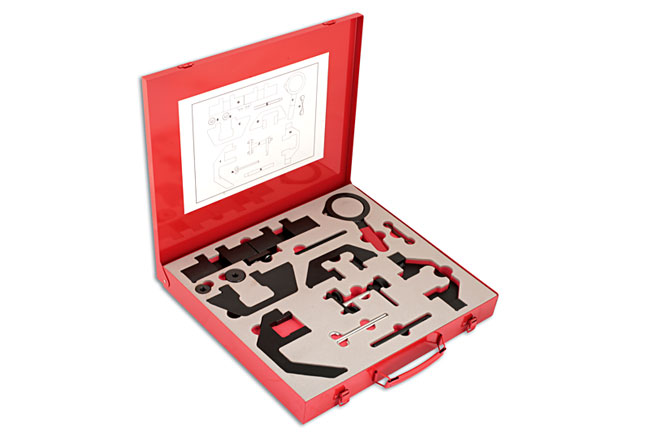

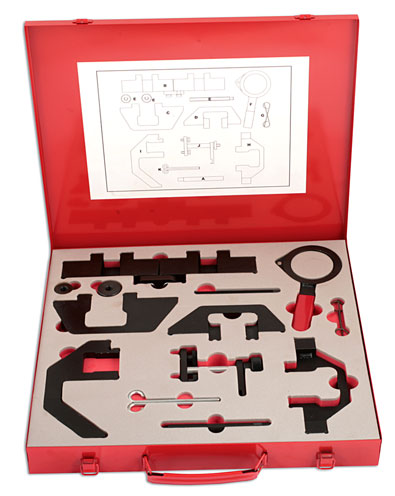

Supplied in a metal storage case.

Email to friend

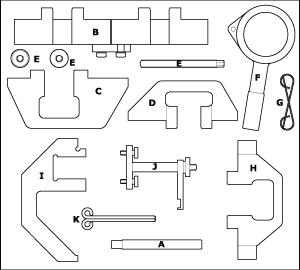

ID	OEM Ref	Description	Part
A	11 2 300 KM 813 12-108 12-171 LRT12-108 LRT12-171 LRT-12-108 LRT-12-171 112300 KM813 12 108 12 171 LRT12 108 LRT12 171 LRT 12 108 LRT 12 171 12108 12171 11 5 120	Crankshaft Alignment Pin	23048-01
B	11 3 240 113240	Twin Cam Alignment Tool	23048-02
C	11 3 190 113190	Camshaft Alignment Tool - Petrol	23048-03
D	11 3 320 KM 811 12-112 LRT12-112 LRT-12-112 113320 KM811 12 112 LRT12 112 LRT 12 112 12112 LRT12112	Camshaft Alignment Tool - Diesel	23048-04
E	10171 11 4 220 114220 11 3 390	Chain Pre-Tensioner Tool (Nut and Spindle)	23048-05
F	11 5 490 115490	Vanos Unit Sprocket Tool	23048-06
G	2mm Drill Bit 11 3 292 12-114 KM 823 LRT12-114 LRT-12-114 2mmDrillBit 113292 12 114 KM823 LRT12 114 LRT 12 114 12114 LRT12114	Tensioner Locking Pins (2)	23048-07
H	11 3 090 113090	Camshaft Locking Tool	23048-08
I	11 6 322 12-173 LRT12-173 LRT-12-173 116322 12 173 LRT12 173 LRT 12 173 12173 LRT12173	Camshaft Alignment Tool	23048-09
J	11 6 320 12-174 LRT12-174 LRT-12-174 11 6 321 116320 12 174 LRT12 174 LRT 12 174 116321 12174 LRT12174	Clamp assy for Camshaft Alignment Tool	23048-11
K	11 3 340 12-172 LRT12-172 LRT-12-172 113340 12 172 LRT12 172 LRT 12 172 12172 LRT12172	Tensioner Locking Pins (2)	23048-12
